High-Quality Philips 32inch JHT127 Led Backlight Strips Supplier, Factory

The JHT127 LED TV backlight strip made with 8 SMD LEDs, each rated at 3V/1W, it has a total power of around 8W. Its color temperature in the Cool White range (6000K–7000K) is ideal for LCD backlighting， stands out with several features. It offers high brightness, making it suitable for mid - to - large LCD screens (32" and above). With low heat emission due to high - quality LED chips and efficient heat dissipation, it has a long lifespan of 30,000–50,000 hours, depending on cooling and driving current. It's designed for specific Philips TV models, ensuring compatibility with the original driver circuit. However, during installation, users need to pay attention to voltage matching, heat management, and ESD protection. When replacing, it's recommended to purchase from official channels or verify key specs if using third - party alternatives.

Send Inquiry

Product Description

📦

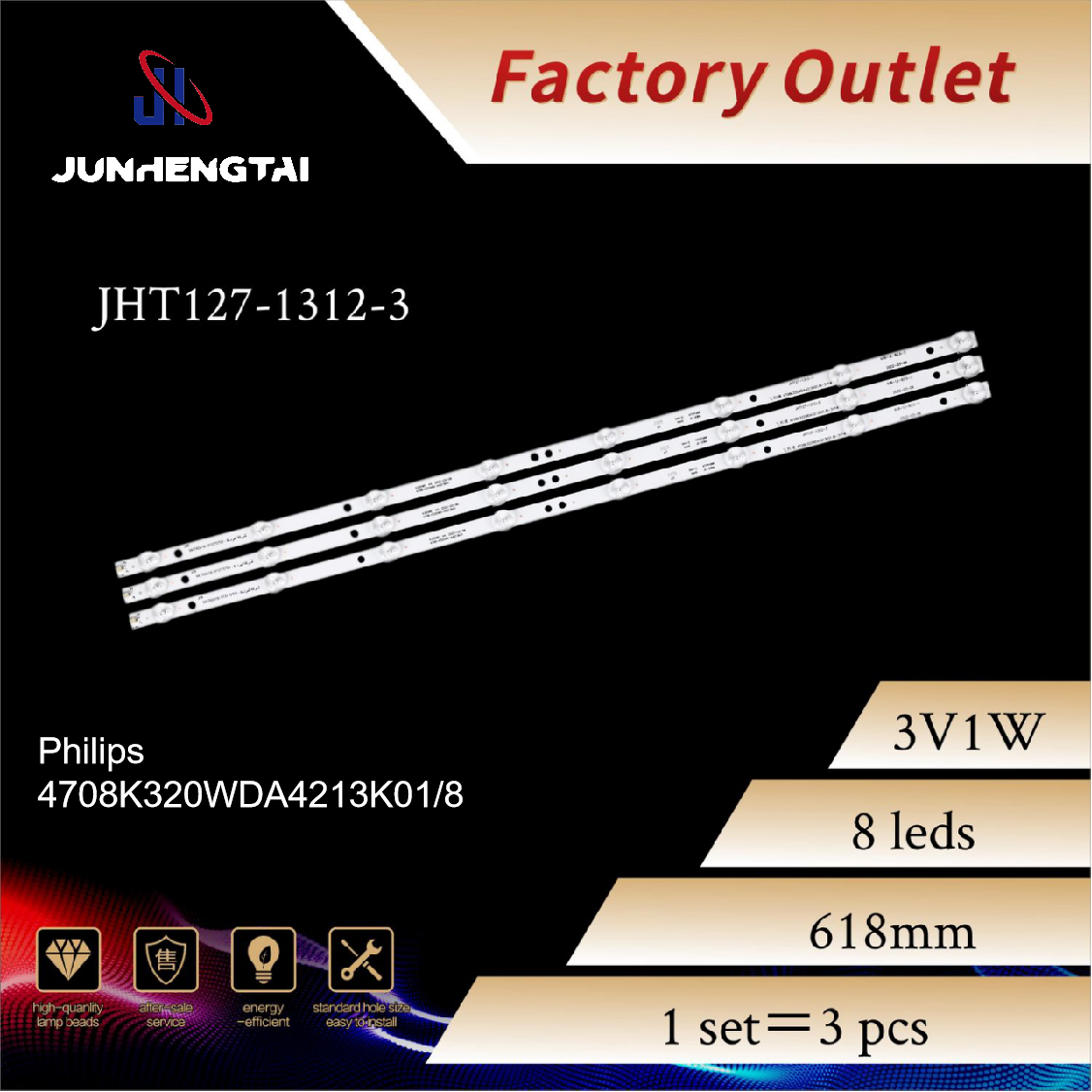

Model: JHT127

Configuration: 8 LEDs per strip

⚡

Voltage: 3V per LED

Power: 1W per LED

The JHT127 LED TV Light Strip is a high-performance lighting solution designed for LCD TVs. This solution provides customizable features to meet various lighting requirements for modern display panels.

🚀Main Features & Advantages

High Brightness: Features 8 SMD LEDs, ensuring bright and even lighting for screens 32 inches and above.
Low Heat Dissipation: Built with high-quality chips that minimize heat build-up, extending the life of the LCD panel.
Long Service Life: Rated for 30,000 to 50,000 hours of operation.
Compatibility: Designed for specific TV models to ensure seamless integration with original driver circuitry.
Custom Sizes: Available in various lengths, including 320mm or 420mm, upon request.

📺Product Application

Typical use cases: The primary application of the JHT127 LED light bar is LCD TV backlighting. It effectively replaces faulty or dim backlight bars, ensuring the screen displays clear, vivid, and high-quality visuals for movies, games, and daily TV use.

Display Upgrades: Beyond repair, it can upgrade commercial displays using similar backlight strips due to its energy-saving characteristics and high brightness.

🔧Compatible TV Models

32-inch LED TV (including various 32PFL series)
Mid-range models of 40–43 inches (may require multiple strips in parallel)

⚠️Installation Instructions

Voltage Matching: Ensure the driver board output matches the light strip’s constant current specifications.
Heat Management: Securely fasten the strip to the metal frame to ensure efficient heat dissipation.
ESD Protection: Avoid direct contact with LED chips to prevent static electricity damage.

Replacement Tips: Verify specifications including the number of LEDs, voltage/wattage, physical size, and connector type before replacement to ensure optimal results.

❓Frequently Asked Questions

1. What are the electrical specifications for the JHT127 strip? Each JHT127 strip contains 8 LEDs, with each LED operating at 3V and consuming 1W of power.

2. Which TV sizes is this LED strip compatible with? It is ideal for 32-inch LED TVs and mid-range models between 40 to 43 inches when used in parallel configurations.

3. How long is the expected lifespan of these backlight strips? The JHT127 is designed for durability, offering a service life of 30,000 to 50,000 hours depending on cooling conditions.

4. Can the length of the light strip be customized? Yes, we can provide custom sizes such as 320mm or 420mm lengths to fit specific TV model requirements.

5. What is the most important factor during installation? Ensuring the TV's driver board output matches the strip's voltage and maintaining proper contact with the metal frame for heat dissipation are critical.

6. Can this be used for commercial displays? Yes, its high brightness and energy efficiency make it suitable for both home TV repairs and commercial display upgrades.
