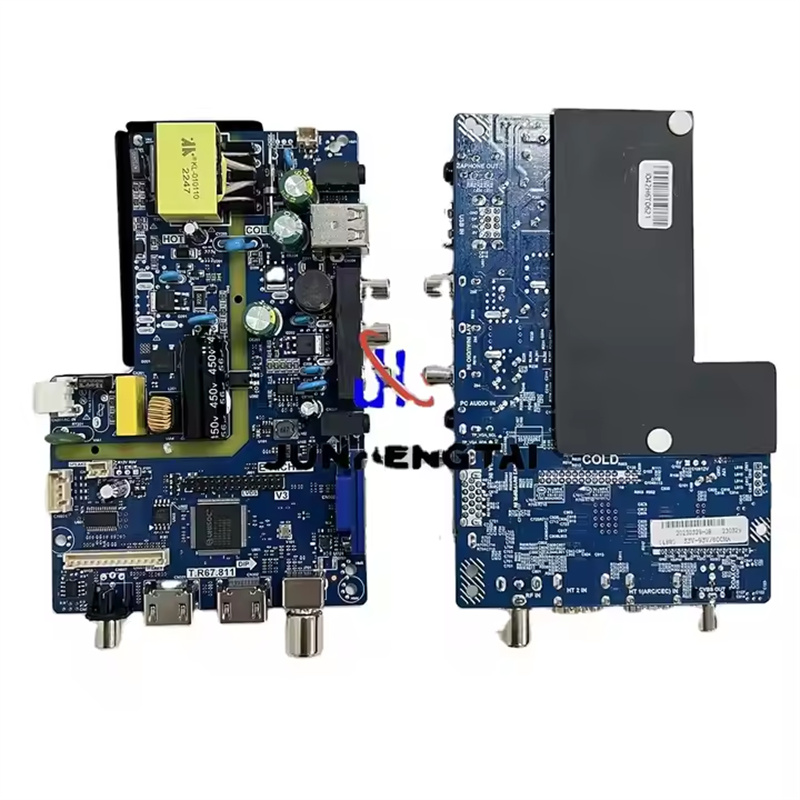

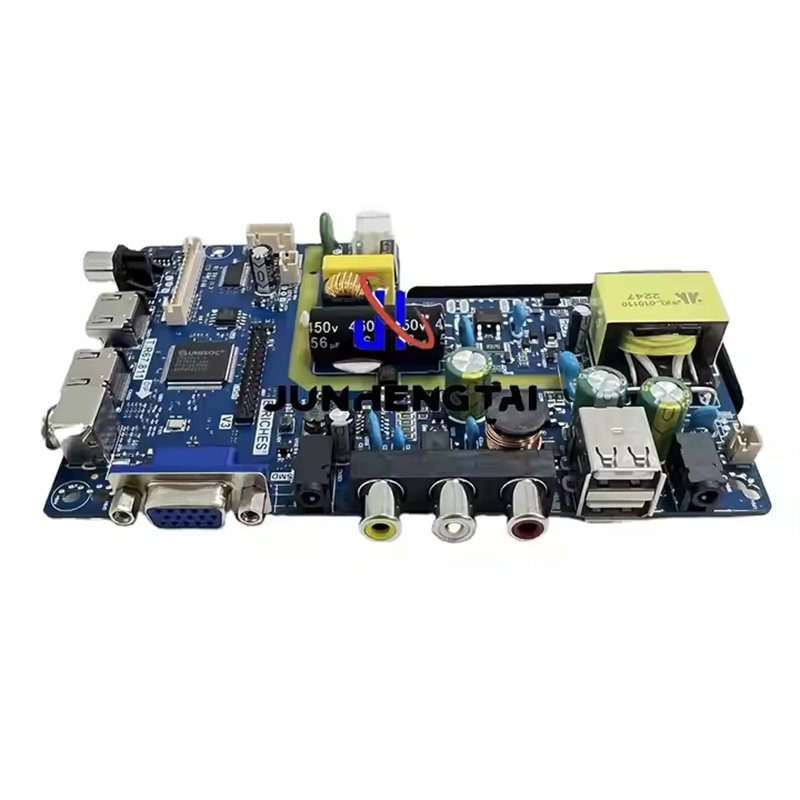

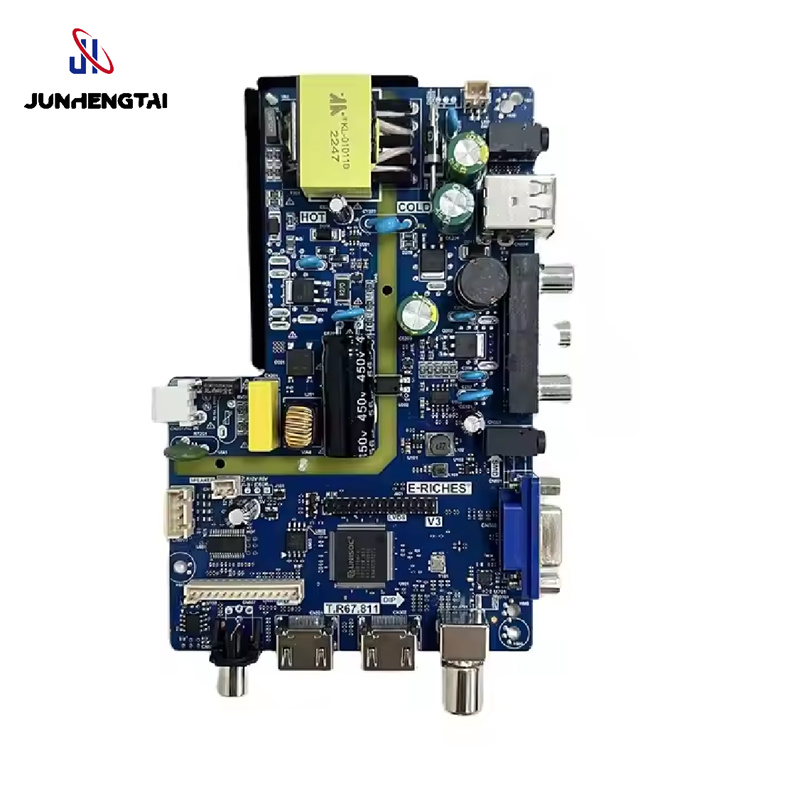

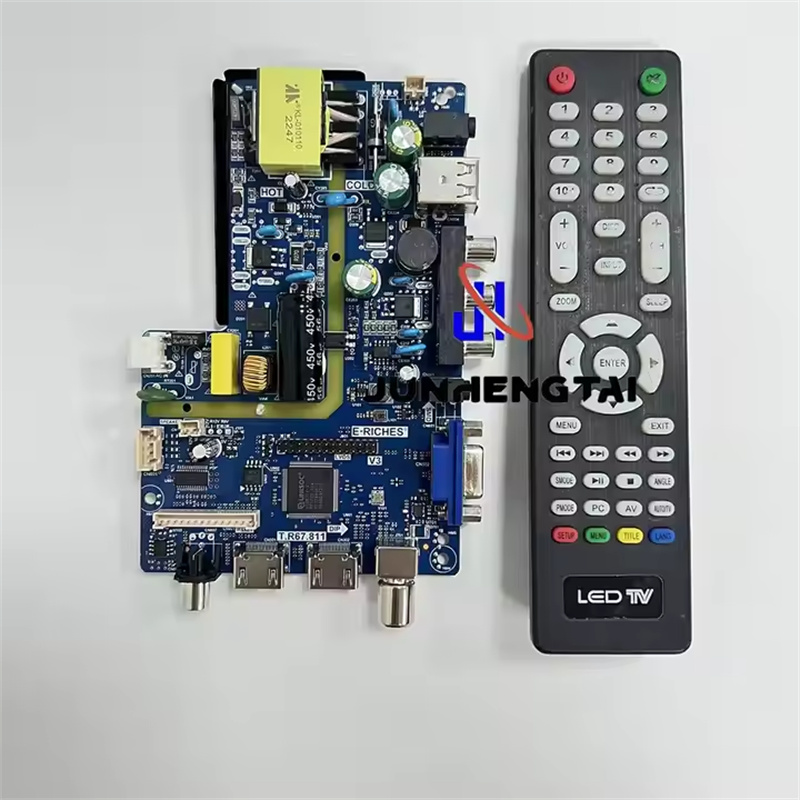

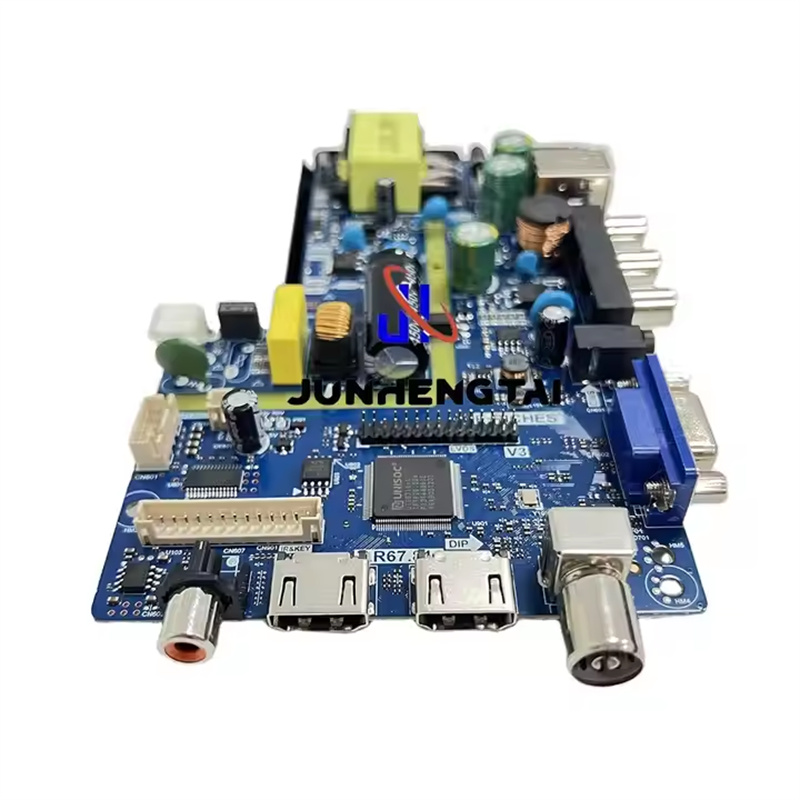

Product Details
◈
Compatibility: The TR67,811 is suitable for LCD TVs ranging from 28 to 32 inches.
◈
Panel Resolution: It supports a resolution of 1366x768 (HD), ensuring clear and detailed image output.
◈
Panel Interface: The mainboard features Single or Dual LVDS interfaces for connecting to the LCD panel.
◈
Input Ports: It includes 2 HDMI ports, 2 USB ports, an RF tuner, AV input, and VGA input, supporting multimedia playback and various signal sources.
◈
Output Ports: The board provides an earphone jack for audio output.
◈
Audio Amplifier: It features a built-in audio amplifier with 2 x 15W (8 ohm) output, delivering robust sound.
◈
OSD Language: The on-screen display (OSD) supports English language.
◈
Power Supply: The mainboard operates within a wide voltage range of 33V to 93V, and the backlight power is typically 25W with a voltage range of 36V to 41V.
◈
Multimedia Support: The USB ports support multimedia playback, allowing users to enjoy videos, music, and photos directly from a USB drive.
Product Applications
The TR67,811 LCD mainboard is designed for a variety of applications, making it a practical choice for both replacement and new installations. Its applications include:
✔
LCD TV Replacement: The mainboard is ideal for replacing faulty or outdated motherboards in 28-32 inch LCD TVs.
✔
DIY TV Projects: It can be used in DIY projects to build or upgrade LCD TVs, providing a cost-effective and flexible solution.
✔
Displays: The mainboard's compatibility and features make it suitable for commercial displays, such as in retail stores, restaurants, or small-scale advertising screens.
✔
Home Entertainment: With its support for multiple input sources and multimedia playback, the TR67,811 enhances the home entertainment experience by providing a reliable and high-performance core for LCD TVs.
Frequently Asked Questions
What screen sizes are compatible with the TR67,811 mainboard?
The TR67,811 is specifically designed for LCD TVs ranging from 28 to 32 inches.
What is the maximum resolution supported by this board?
This mainboard supports an HD resolution of 1366x768, providing clear image quality for compatible panels.
How many HDMI and USB ports does the TR67,811 have?
It is equipped with 2 HDMI ports and 2 USB ports, alongside other inputs like RF, AV, and VGA.
Does the USB port support movie playback?
Yes, the USB ports support full multimedia playback, allowing you to play videos, music, and view photos directly from a USB drive.
What kind of audio output does the mainboard provide?
The board features a built-in audio amplifier with 2 x 15W output (8 ohm) and includes an earphone jack for external audio connection.
Is this board suitable for DIY projects or commercial displays?
Absolutely. Its flexible design makes it ideal for DIY TV upgrades, commercial retail displays, and restaurant advertising screens.
